May 24, 2022Richauto DSP Controller A18 Handle CNC Milling Machine Router 4-Axis USB Linkage Motion Control System Device
₨66,000.00
A18E / A18S DSP controller-main information
1. This is the original brand: RichAuto
2. DSP controller of cnc router, USB connection can be used without a computer
3. Suitable for four-axis
4. Apply for a four-axis CNC machine tool
5. We have set up the English version before delivery
6. Manuals and software can be sent by mail

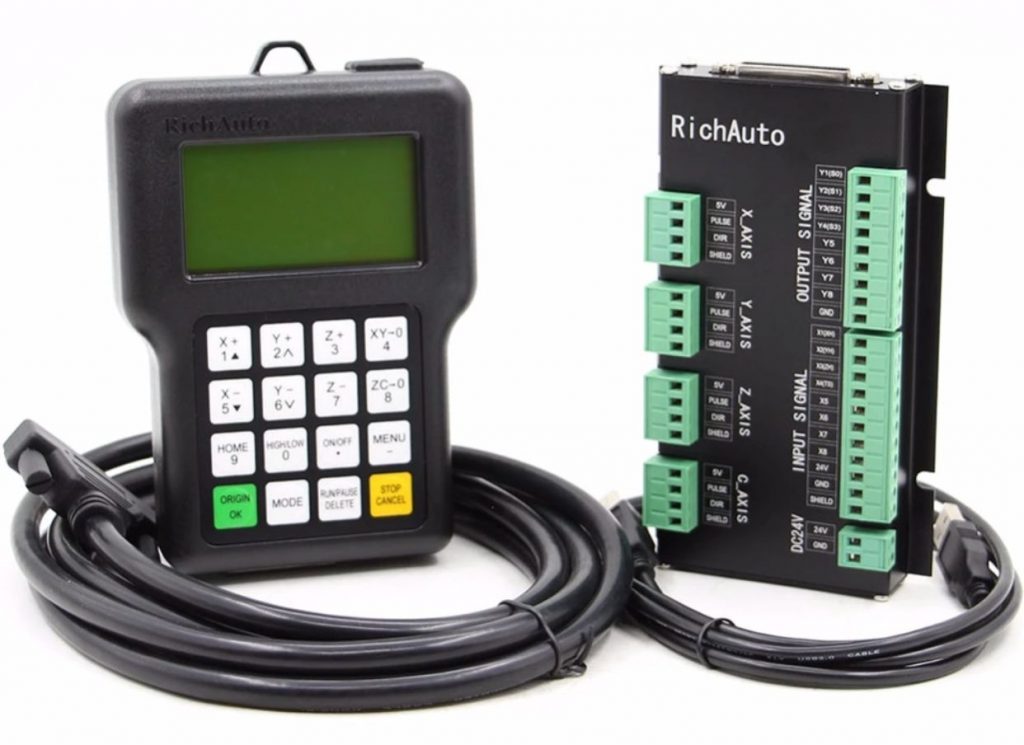

RichAuto A18 DSP controller includes two versions, A18E and A18S.
The process and its system are the same. It can set the language in DSP by itself.
The only difference is:
The surface of the handle of A18E is English words without Chinese.
There are Chinese and English words on the surface of the handle of A18S.
Features
◆Using an 8-core processor CPU, faster computing speed and stronger processing capacity
◆ 16-key operation mode, comfortable handheld terminal, easy to learn and use, simple and fast
◆ The complete offline operation, multiple mobile storage methods: 512M body memory, support
Support large-capacity mobile storage device to read.
◆ It is more intelligent in the way of pre-reading processing files. For new processing files, only
◆ Pre-reading during the first processing, and as needed during the pre-reading process
You can skip the check to save time.
◆ Support power-off recovery and power-off processing.
◆ With parameter backup and parameter recovery functions, parameters and processing files are partitioned
Store, effectively prevents the loss of important parameters.
◆ Added safety warning and system abnormal prompt functions.
◆ It is widely used in the system control of processing equipment such as Buddha statues, stair columns, sofas, and table legs.
Product Parameter
Product Number RichAuto-A18
Processor DSP
Built-in memory 512M
Display 128×64 monochrome LCD
Communication port U disk/USB data cable
Number of linkage axes: 4 axes
Control signal: differential signal
Drive system: stepper/servo motor
Minimum input unit: 0.001mm
Power-down protection function: support
Power-off processing function: 8
External power supply voltage: 24V DC
Manual mode: continuous/inching/distance
Interpolation method: straight line/arc
Soft/hard limit: support
Maximum pulse frequency: 1Mhz
Password protection: support
Support language: Simplified/Traditional Chinese English Others can be customized

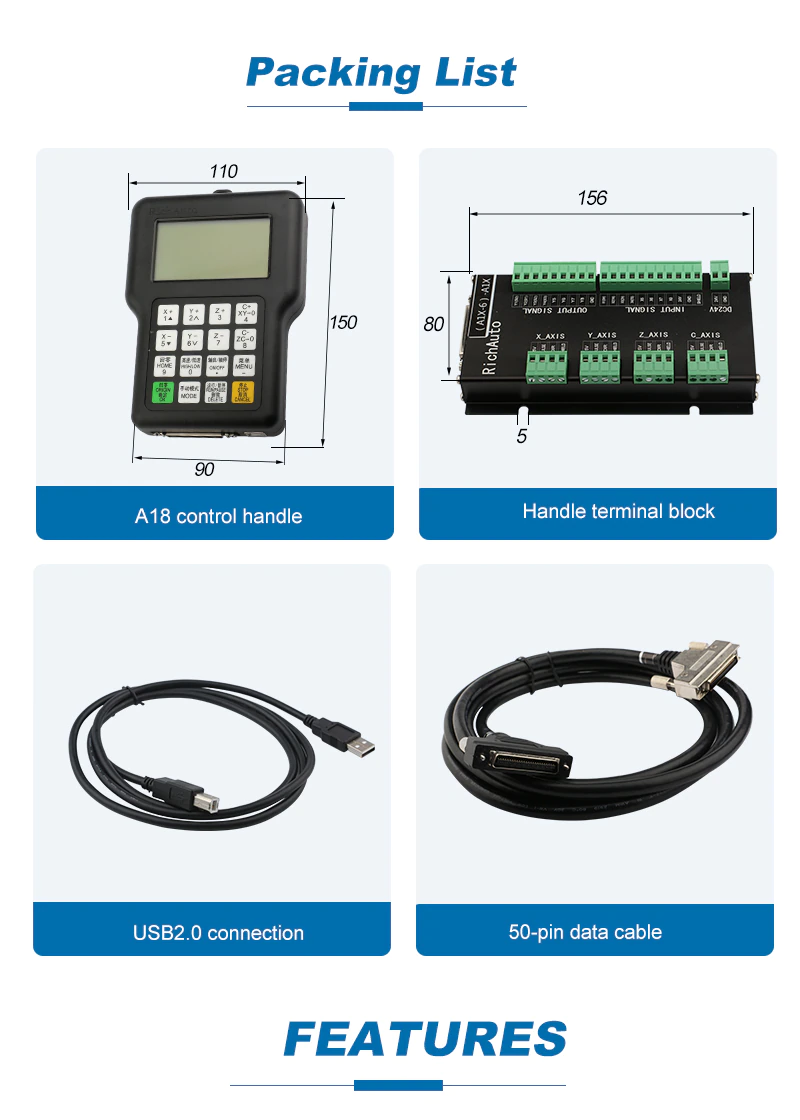

Standard configuration: 1 handle controller/USB data line 1/50-pin data line 1/8 input and 8 output wiring board 1/data CD
