Description
Description:

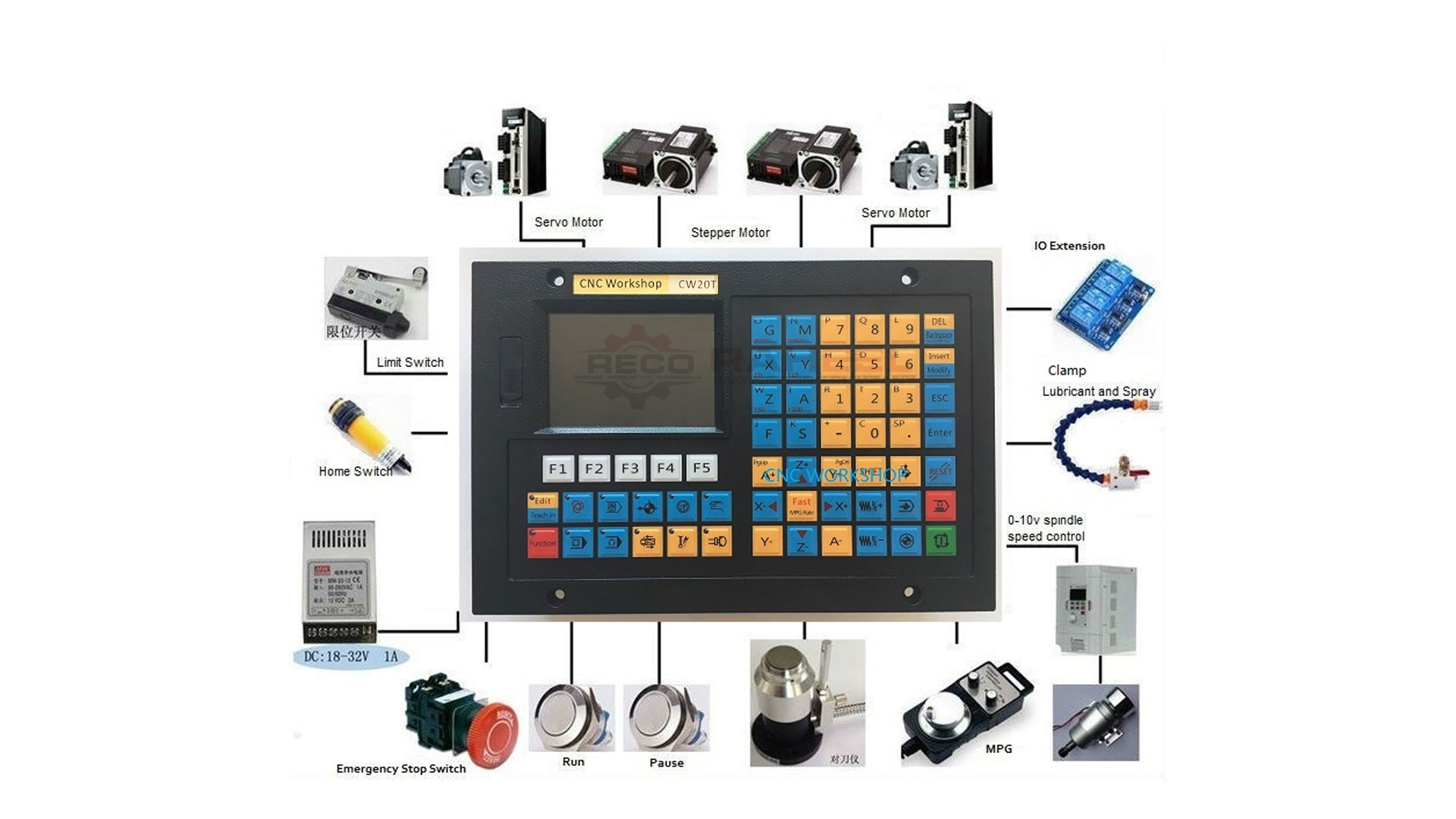

CW20T Lathe Controller is a new generation CNC lathe CNC system developed by our company. Adopt international standard G code programming, full-screen editing program, Chinese and English operation interface. The system operation is simple and intuitive. It can complete the machining of outer circle, end face, slotting, taper, arc, thread, tapping and deep hole drilling through programming. It supports variable frequency spindle and servo spindle control, supports the electric tool holder, input and output customization, input and output port expansion and other functions, with a high cost performance.
Features:
Based on 32-bit microprocessor, fully linked, 0.001mm interpolation accuracy, maximum speed of 12m/min.
With a 7-inch color widescreen LCD, resolution 800×480, Windows interface style. Equipped with 5 soft function keys, the operation is simple and easy to learn. Provide rich display interface such as parameter classification, alarm log, system diagnosis, etc., convenient for debugging and maintenance.
Supports international standard G-code.
40 G commands support drilling cycle and tapping cycle.
Part program full-screen editing, built-in 256M massive program space, can store 200 parts program.
With USB interface, support U disk file reading and writing, data backup and U disk direct processing (DNC).

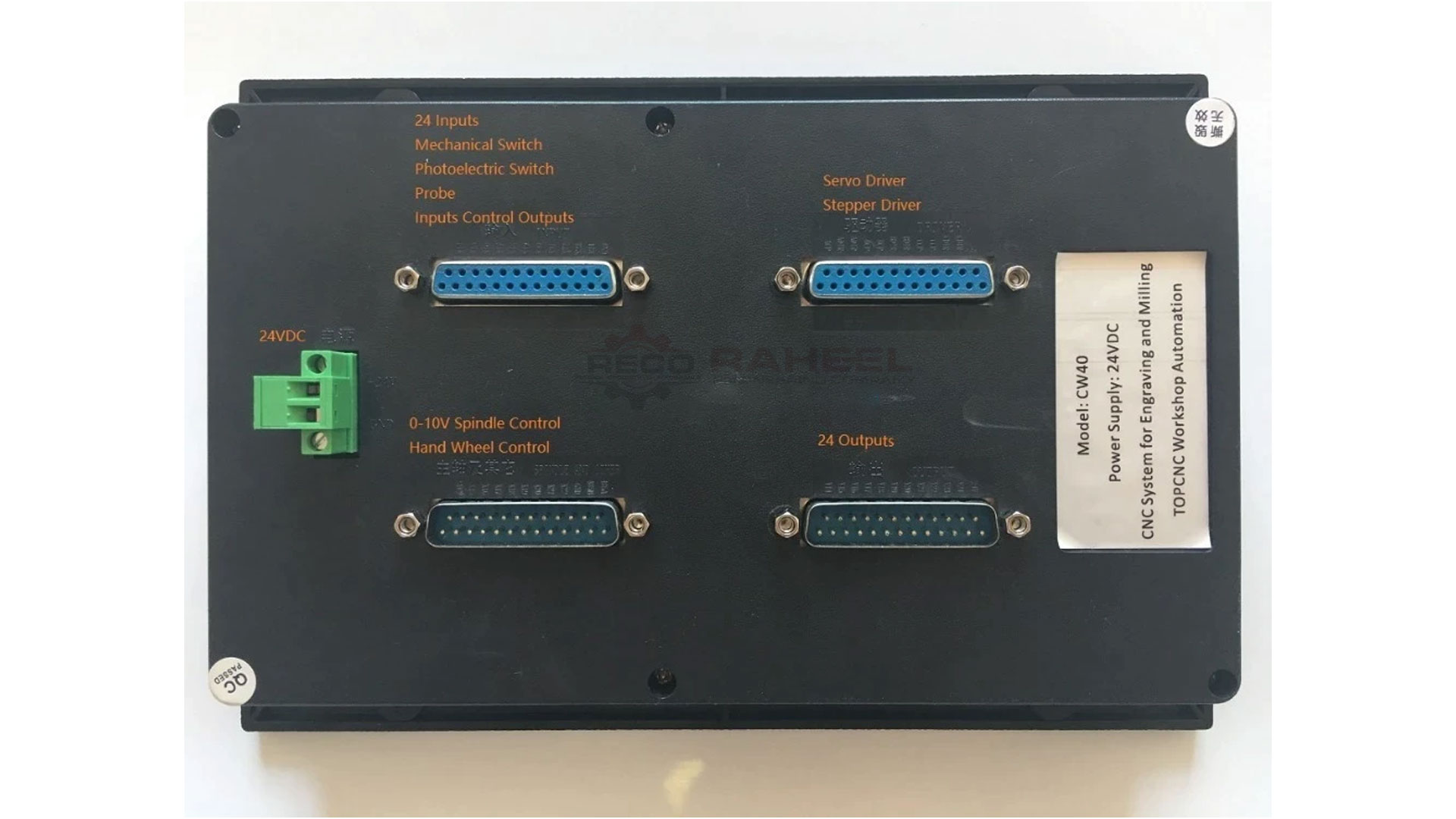

Input 24 (expandable to 96) points, output 24 (expandable to 96) points (custom), flexible and convenient.
Chinese/English operation interface, complete help information, and more convenient operation.
Support multi-level operation authority, convenient device management, and limited time system locking function.
